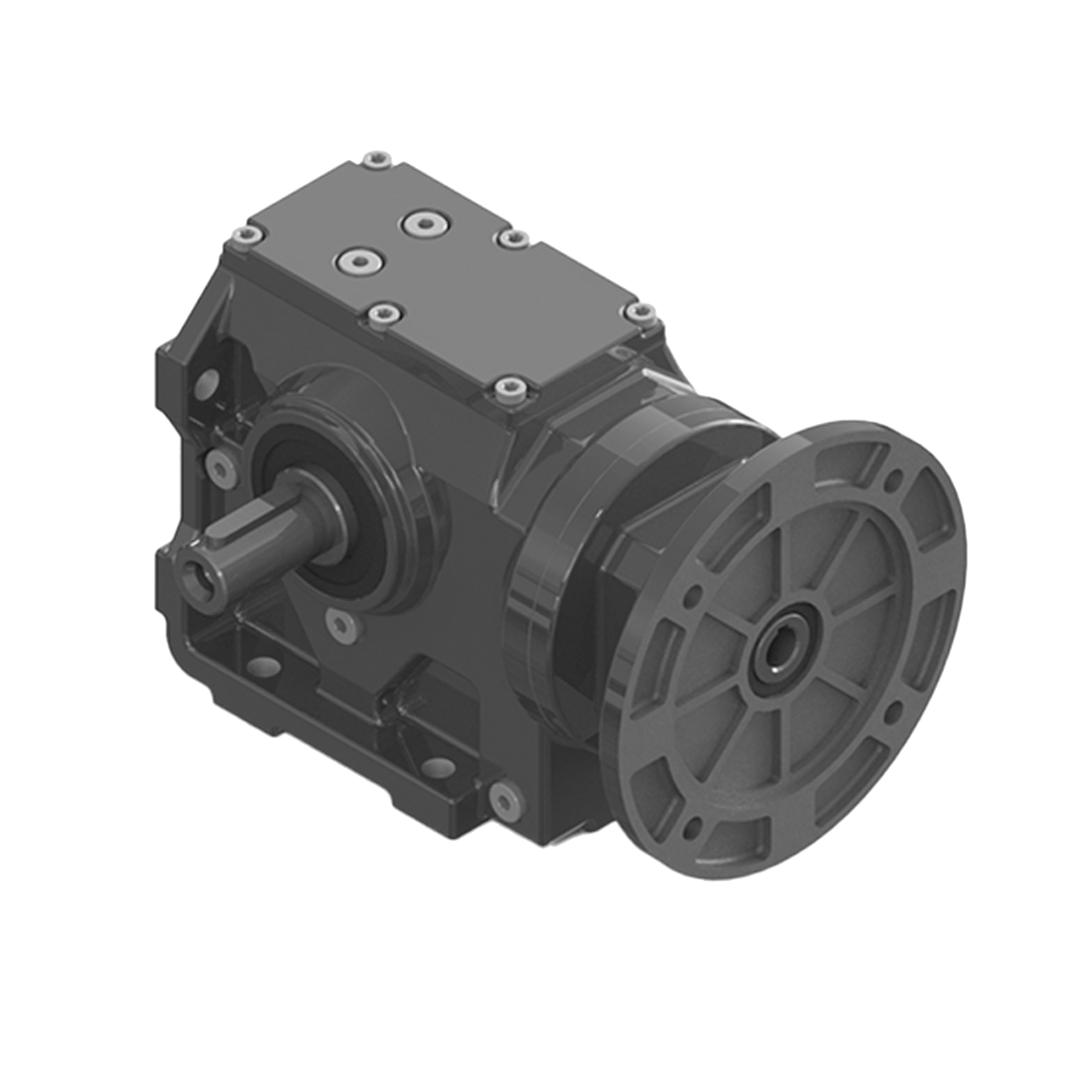

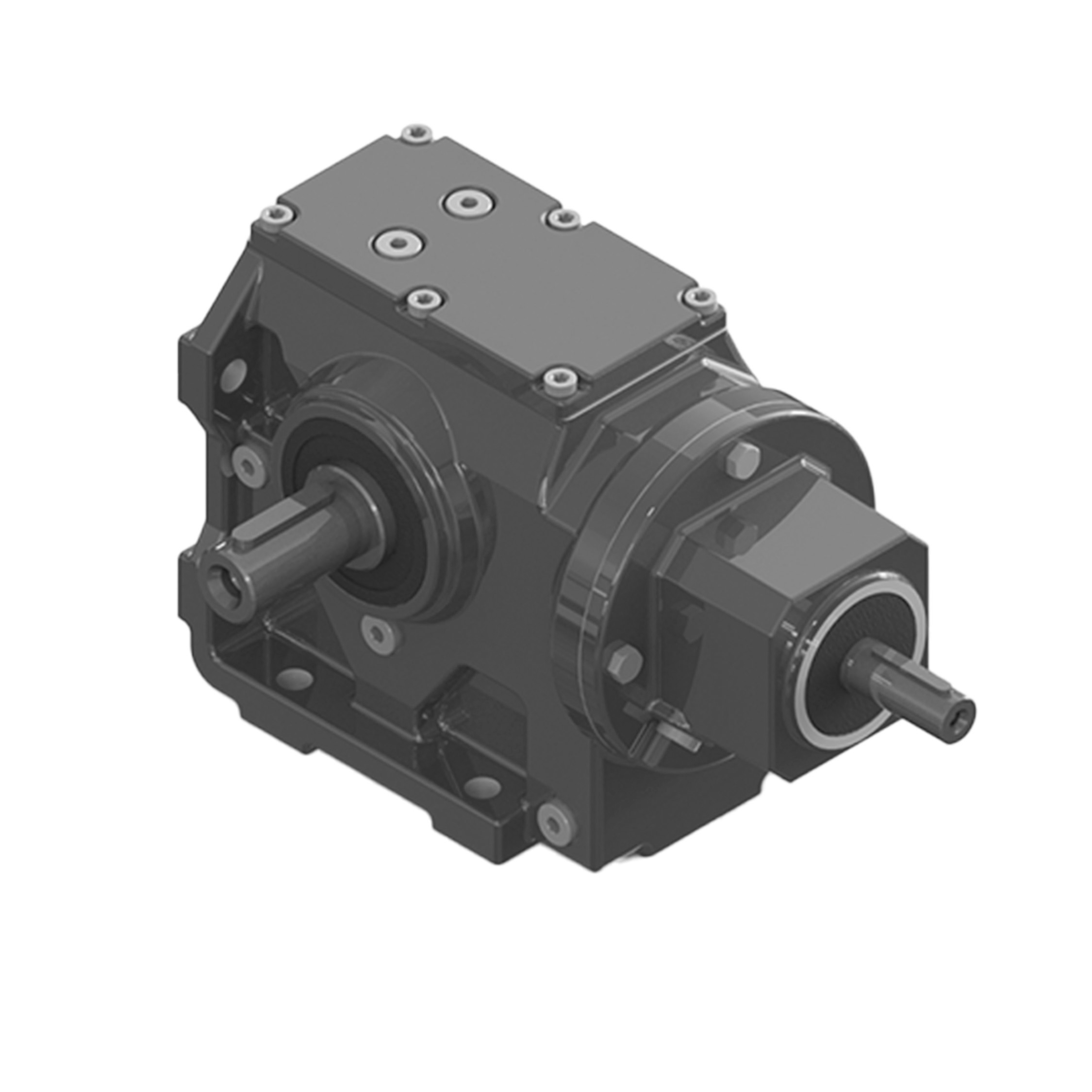

Helical &Worm Gear Reducer S Series

The biggest advantage of the worm gear reducer is its simple mechanical structure, and its efficiency is far better than that of the traditional worm gear reducer. Its parts are modular design, and the S series reducer can be connected with the AC motor or the servo motor.

• Space-saving installation. Torque and speed can be adjusted individually in 7 specifications.
• Combination of high-efficiency helical gear and worm gear transmission. Rated torques from 92 Nm to 4,000 Nm.

Sizes S..37 to S..97

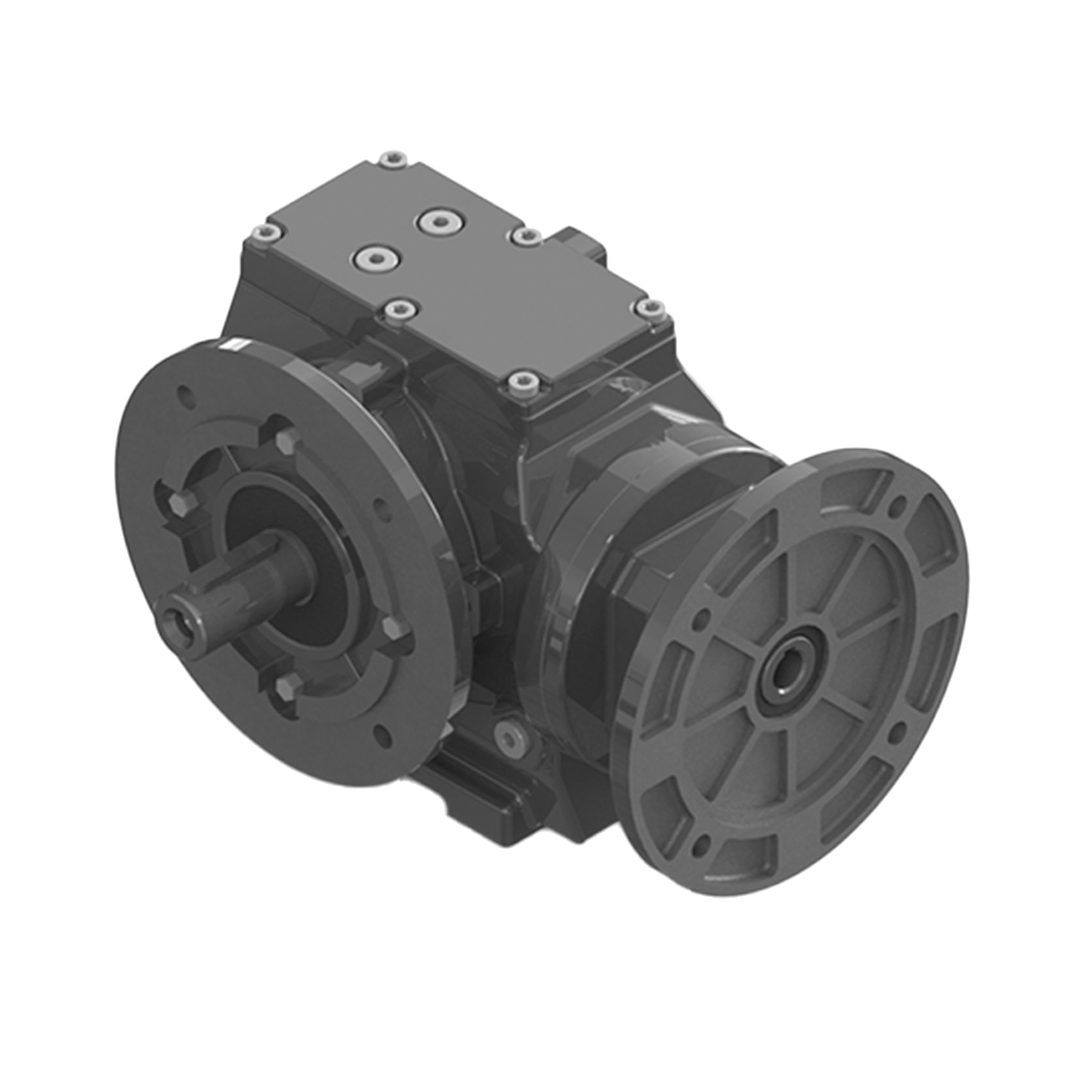

Installation method - foot mounted or flange installation
-B5 or B14 flange mounting

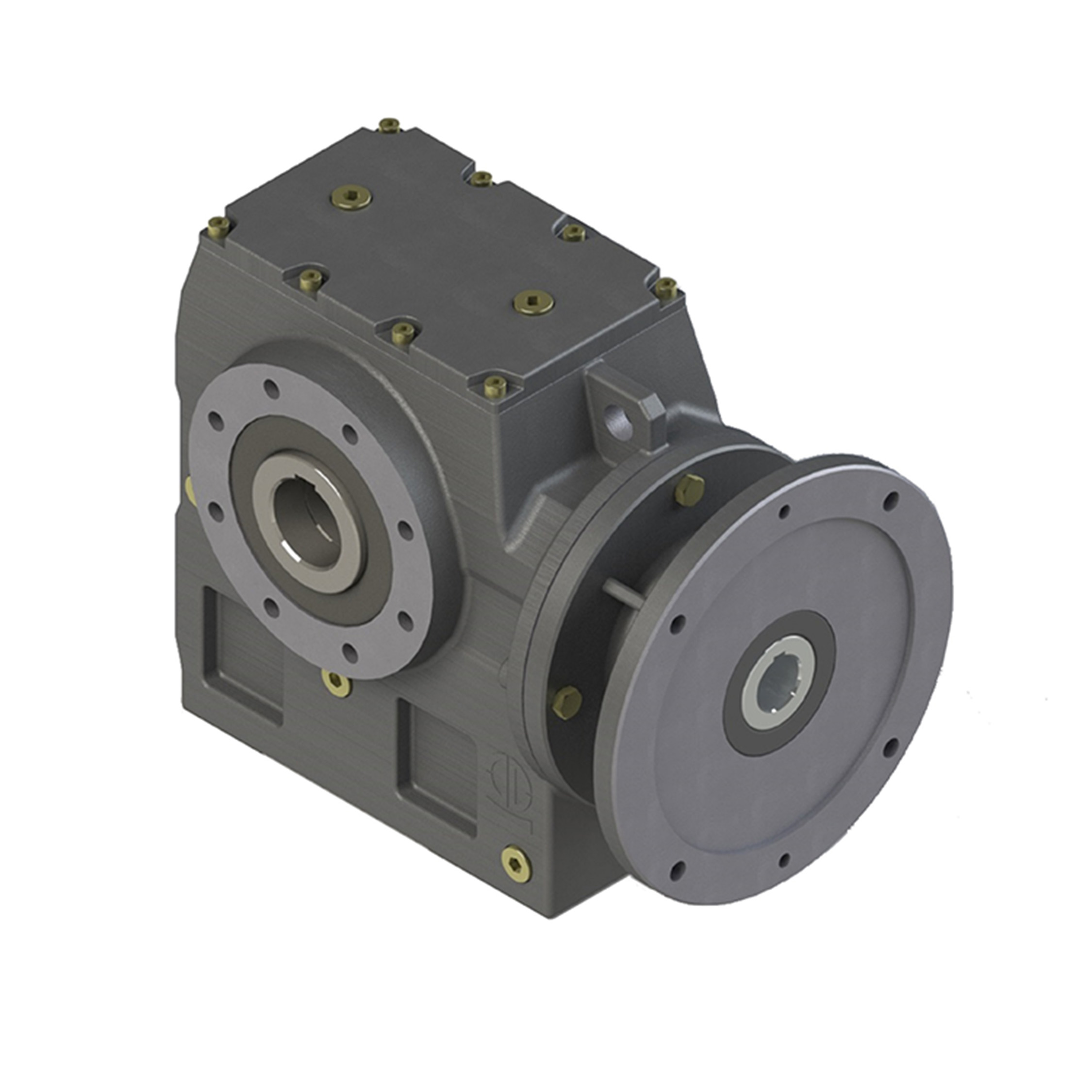

-Solid shaft or hollow shaft
-Hollow shaft with keyway connection, shrink disk, splined hollow shaft
